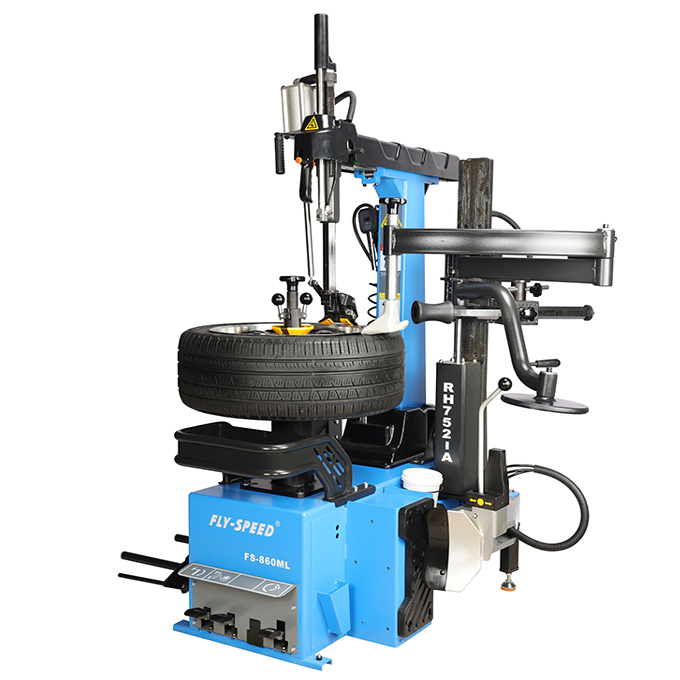

FS-860ML+RH752A


FS-860ML+RH752A

Tyre changer 860 series

产品特性

Powerful and reversible mounting head takes the place of traditional crowbar. It protects tyre lips and rims thoroughly, which also makes mounting and dismounting   convenient and faster.

Maximum mounting and dismounting size is up to 26 inches. Auxiliary arm provides more faster service for mounting/dismounting low profile tyres and run-proof tyres.
With pneumatic handle controls the hexagonal rod up and down lifting system.
The professional and user-friendly designed hand-controlled pneumatic tyre shovel changes the traditional operation method and provides convenient service.
Tyre pneumatic lifting system saves time and effort when mounting/dismounting heavey-duty tyres.
With fixed operating table assembly and no table center positioning locking device realize convenient operation.
  • FS-860ML+RH752A



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~23"/305~660mm
Max. wheel diameter: 42"/1080mm
Max. wheel width : 16"/410mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 387 Kg
Gross weight :453 Kg
