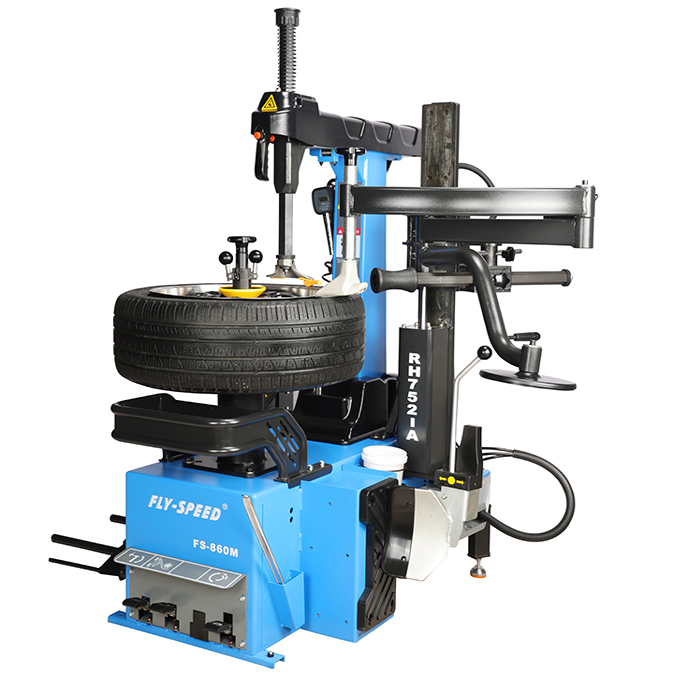

FS-860M+RH752A


FS-860M+RH752A

Tyre changer 860 series

产品特性

Maximum mounting and dismounting size is up to 26 inches. Auxiliary arm provides more faster service for mounting/dismounting low profile tyres and run-proof tyres.

The professional and user-friendly designed hand-controlled pneumatic tyre shovel changes the traditional operation method and provides convenient service.
Professionally designed and manufactured mounting head made of special alloys provides life-time free service.
Tyre pneumatic lifting system saves time and effort when mounting/dismounting heavey-duty tyres.
With fixed operating table assembly and no table center positioning locking device realize convenient operation.
  • FS-860M+RH752A



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~23"/305~660mm
Max. wheel diameter: 42"/1080mm
Max. wheel width : 16"/410mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 378 Kg
Gross weight :440 Kg
