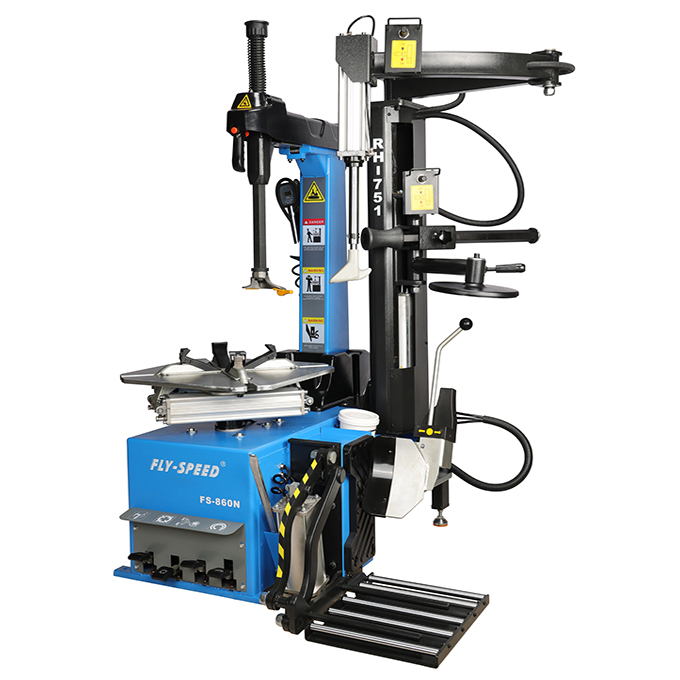

FS-860N+RH751+TL


FS-860N+RH751+TL

Tyre changer 860 series

产品特性

Automatic adjustment and double locking device insure reasonable gap between mounting head and rim.

Maximum mounting and dismounting size is up to 24 inches. Auxiliary arm provides more faster service for mounting/dismounting low profile tyres and run-proof tyres.
The professional and user-friendly designed hand-controlled pneumatic tyre shovel changes the traditional operation method and provides convenient service.
With tyre pneumatic lifting system, it becomes more time-saving labor-saving and convenient for heavy-duty tyres’ moving and mounting/dismounting.
Professionally designed and manufactured mounting head made of special alloys provides life-time free service.
  • FS-860N+RH751+TL



Technical Data:
Power supply:AC 110V/220V/380V/50~60Hz
Motor Power:1.1KW
Outside clamping:11”-23”/280-585mm
Inside clamping:12”-24”/305-610mm
Max. wheel diamete:40”/1000mm
Max. wheel width:16”/410mm
Operating pressure:8-10bar
Net weight: 408kg
Gross weigh: 468kg
