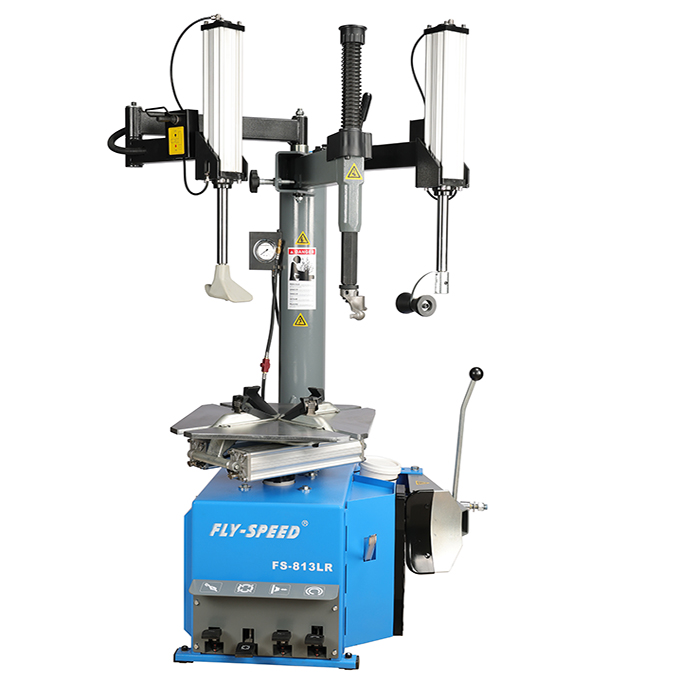

FS-813LR


FS-813LR

Tyre changer 813 series

产品特性

With left and right cylinder type auxiliary arm system, it makes operation more quick and time-saving when mounting/dismounting tyres with a larger width and aspect ratio.

The overall machine is widened and thickened with a short body. The center of gravity of the machine moves downward, making operation easier and more convenient.

With aluminum big cylinder prevents rust and ensure the service life.

Professionally designed and manufactured mounting head made of special alloys provides life-time free service.

  • FS-813LR



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~23"/280~585mm
Inside clamping:  12"~24"/305~610mm
Max. wheel diameter: 39"/990mm
Max. wheel width : 13"/330mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 250 Kg
Gross weight :275 Kg
