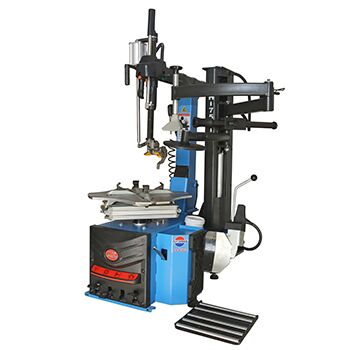

FS-850L+RH750i


FS-850L+RH750i

No crow bar automatic tyre changer

产品特性

Powerful, novel pneumatic overturn mounting head replace the traditional crow bar which can protect tyre lip and rim makes mounting tyre more efficient and easy.
Pneumatically operated tilting column.
Simultaneous pneumatic horizontal and vertical arm locking.
The clamping jaws, mounting head is made of high-quality alloy steel and of scientific structural design protects steel rim from any damage during operation.
With Φ75 small cylinder,solid and oxydization,excellent sealing parts, makes better running and clamping.
Aluminous material is adopted in big cylinder which to avoid rust to guarantee the long life using.
Hand control bead breaker blade is adopted,which replaced the traditional foot pedal control. Far simpler and more convenient.
Gear distance selection is used on the bead breaker blade, suitable for tires of all sizes.
Rolling shutter is used,easy to operate during bead breaker .Get more efficient and skillful.

  • FS-850L+RH750i



Technical Data:
Power supply : AC 110V/220V/380V/50~60Hz

Motor Power : 1.1KW
Outside clamping: 11"~23"/280~585mm
Inside clamping: 12"~24"/305~610mm
Max. wheel diameter: 43"/1100mm
Max. wheel width : 16"/410mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 335 Kg
Gross weight :375 Kg

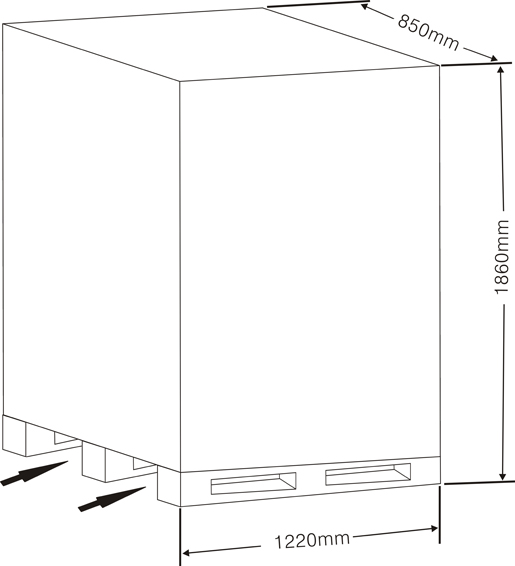

Dimension:1220X850X1860mm
N.W.:335kg
G.W.:375kg
