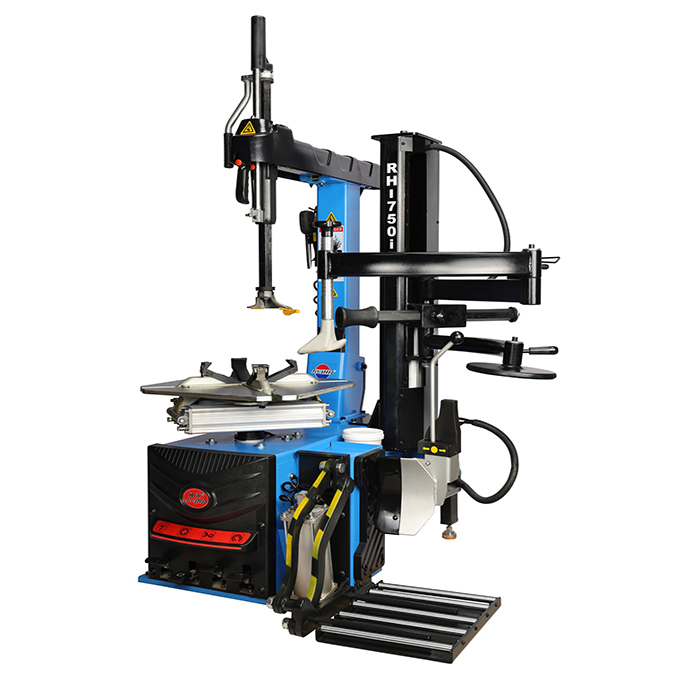

FS-850N+RH750i+TL


FS-850N+RH750i+TL

Automatic Tyre Changer

产品特性

With tilt back and mounting head auto lifting. With pneumatic locking and lifting function.
Right helping arm system enlarge the working area. Pneumatic control arm can be adjusted freely.
Bead breaker is pneumatic controlled. Replace the traditional pedal system. More simple and convenient. Bead breaker can be adjusted for further and close according to the gear. It successfully mounts and dismounts the smaller and bigger tire at the same equipment.
With wheel rolling plate, easier for rolling on the tire to save the labour and more safer to protect the rim.
With wheel lifting, reducing the work intensity. Less labour and time.
With precise processed and manufactured gear box, unique alloy manufactured mounting head and clamp makes the machine durable in use.
Φ75 small cylinder,  hard anodized. Superior aluminium piston and sealing parts makes less resistance. Stronger clamping force and  leakproofness.
Aluminium big cylinder. Forever no corrosion. Prolong the life for the big cylinder.

  • FS-850N+RH750i+TL



Technical Data:
Power supply:AC 110V/220V/380V/50~60Hz
Motor Power:1.1KW
Outside clamping:11”-23”/280-585mm
Inside clamping:12”-24”/305-610mm
Max. wheel diamete:43”/1100mm
Max. wheel width:16”/410mm
Operating pressure:8-10bar
Net weight: 353kg
Gross weigh: 393kg


Dimension:1220X850X1860mm
N.W.:353kg
G.W.:393kg
