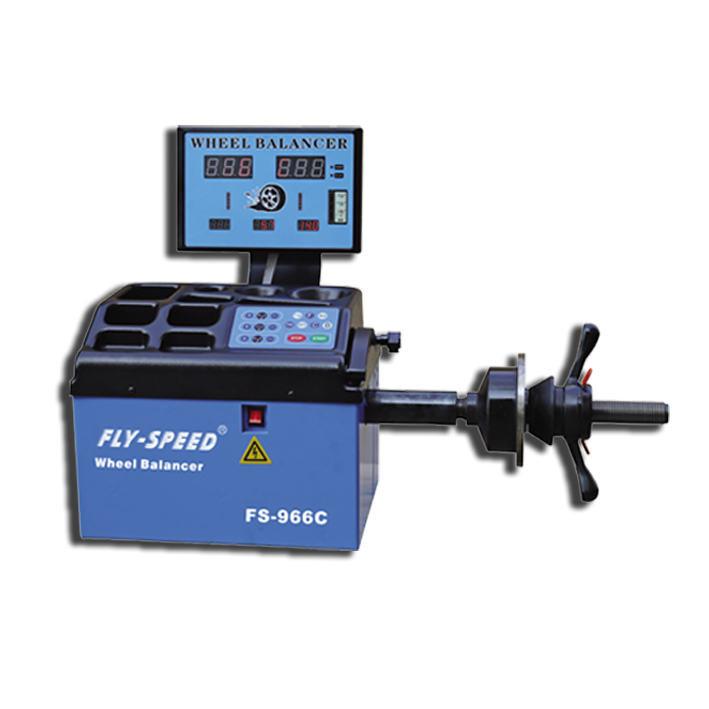

FS-966C

Vehicle balancer

Vehicle balancer, small size, smaller space needed.

With the functions of self calibration and fault self checking.

Static balancing, standard dynamic balancing.

Unbalancing value accurate display. Accurate balancing weight position
indication.

Extra length rotating shaft. Suitable for the all kinds of tyre wheel and
rim.

With functions of automatic brake and locking. Easy for the wheel
mounting.

It will lock the wheel automatically when the measuring completes
without finding unbalancing points.

Low speed motor is adopted. Insure the start-up of heavy wheel, the
stability of brake and safety of operation.

Technical data
Product dimension

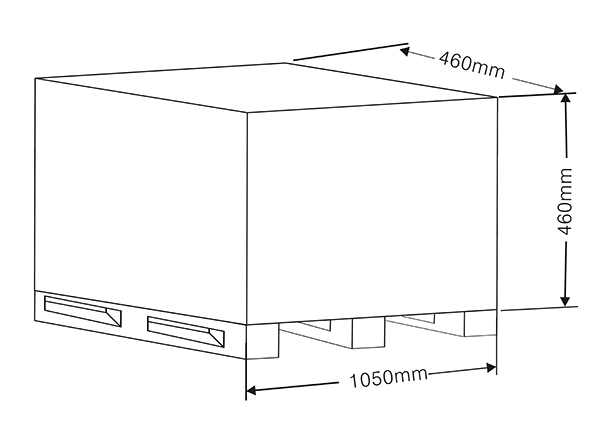

Packing dimension
Parts list

Technical Data
Power supply : AC 110V/220V/50~60Hz
Motor Power : 90W
Rim Diameter: 10"~24"/254~610mm
Rim Width: 1.5"~20"/38~510mm

Max. Wheel Weight : 70 Kg
Balancing Speed: ~130r.p.m
Cycle Time: 8s
Net weight : 41 Kg
Gross weight :52.5 Kg

Dimension：1050*460*460mm
N.W.：41kg
G.W.：52.5kg
