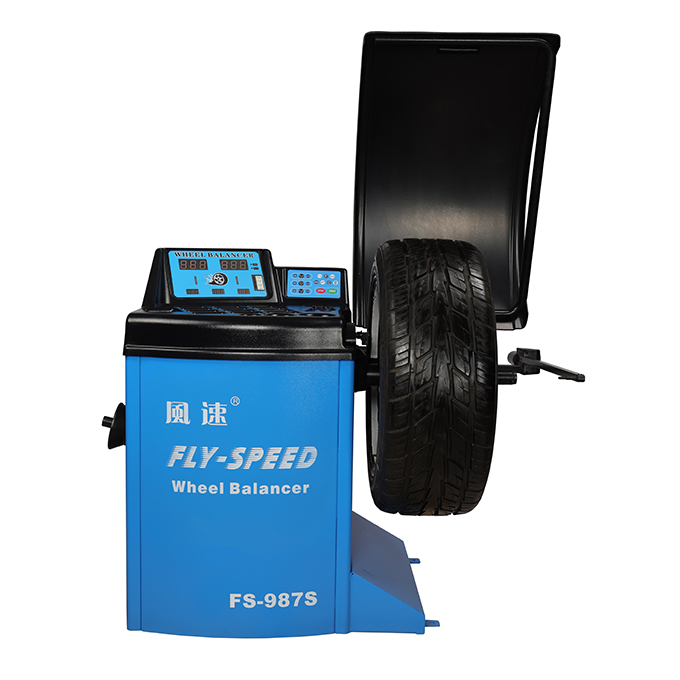

FS-987S


FS-987S

Wheel balancer

产品特性

With the characteristics of high-precision measurement and accurate repeated measurement accuracy.

High balancing accuracy for large tyres (≤26”).

High mechanical principal axis perform the heat treatment to make sure the precision of high repeated measure.

With LED display, measurement numbers can be clearly displayed regardless of light and or darkness.

With automatic brake locking and infrared positioning function, easy for mounting and adhesive weights precisely.

With electromagnetic function, automatically lock the spindle after finding the unbalanced point.

With automatic measurement function of rim diameter, distance and width.

With protective cover, which can be lowered for starting and lifted for braking. And it also can be started by a button on the control panel.

  • FS-987S



Technical Data
Power supply : AC 110V/220V/50~60Hz
Motor Power : 0.25KW
Rim Diameter: 10"~26"/254~660mm
Rim Width:  1.5"~20"/38~508mm
Max. Wheel Diameter: 1000mm
Max. Wheel Weight : 100 Kg
Balancing Speed: ~215r.p.m
Cycle Time: 8s
Noise: <70db
Balancing Precision:±1g
Net weight : 103 Kg
Gross weight :124 Kg



Dimension:1020×860×1200MM
N.W.:  103 Kg
G.W.:  132 Kg
