FS-813B


FS-813B

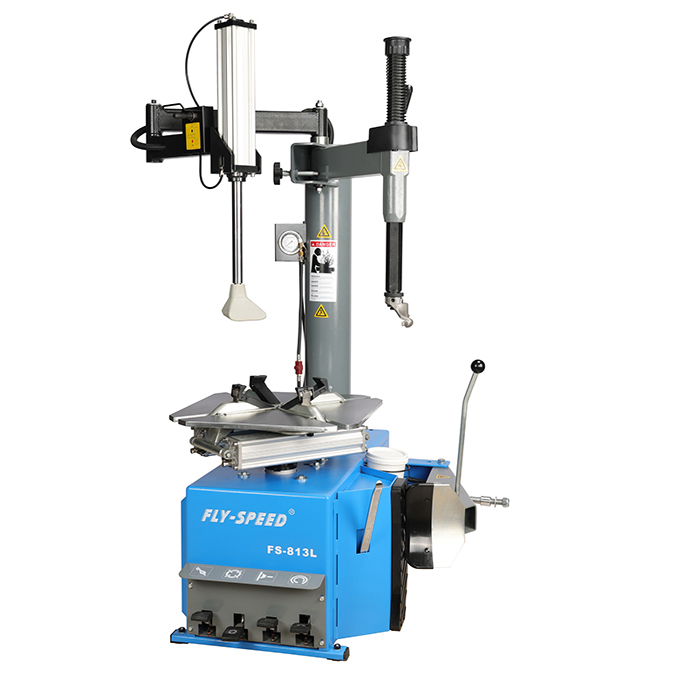

Semi-automatic tyre changer

产品特性
The enlarged 24"turntable is suitable for mounting/demounting larger
   and wider tyre.
Left assistant arm makes the wider tyre mounting/demounting
   operation much swift and labor saving.
The case is more bigger and thicker. Case is lower with column higher,
   which is more suitable for wider and flat tyres.
With the function of centering, makes the operation easy and
   convenient.
Aluminous material is adopted in big cylinder which to avoid rust to
   guarantee the long life using.
40A pure silver point reverse switch adopted, the motor works more
   stable.
  • FS-813B



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~23"/280~585mm
Inside clamping:  12"~24"/305~610mm
Max. wheel diameter: 39"/990mm
Max. wheel width : 13"/330mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 232 Kg
Gross weight :260 Kg

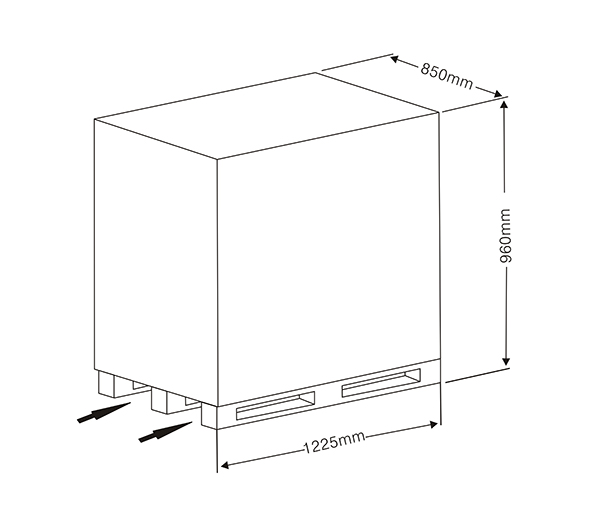

Dimension:1225*850*960mm
N.W.:232kg
G.W.:260kg
