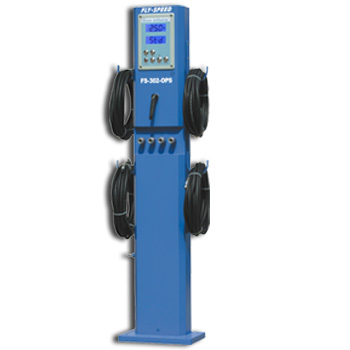

FS-302-OPS

Technical Data
Vehicle Applicable:
Power Requirement : AC110V/220V/50~60Hz
Power Consumption : 24V DC
Power : 40W
Max. Input Pressure :≤240Psi/16.5Bar
Measuring Range: 14.5~210Psi/1~14.5Bar
Operation Temp ：+5℃~+40℃
Accuracy :±1.0Psi/0.07Bar
Display Mode : LED
Units of Measurement: Psi/Bar
Display Increments : 0.1psi/0.01bar

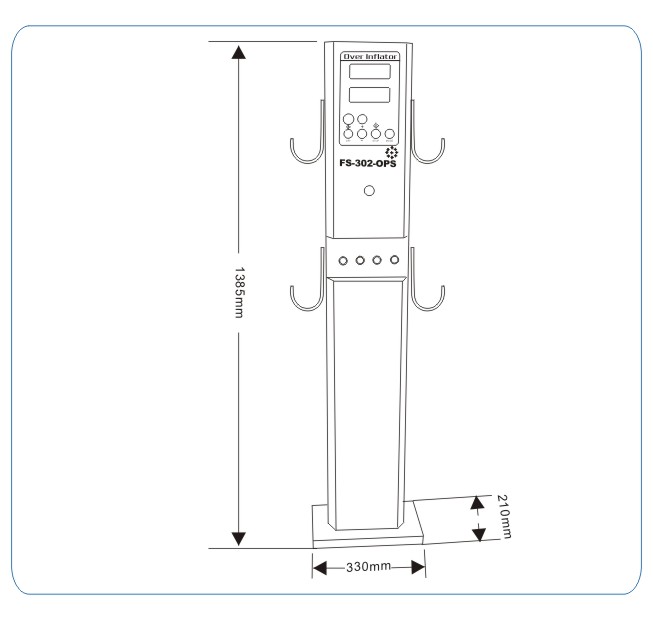

Dimension : 1385X330X210（mm)
Net weight : 18Kg
Standard Fittings : 4X8M High Pressure Charge Hose
CE conformance

Dimension：1400X430X380（mm)
Net weight: 18kg
