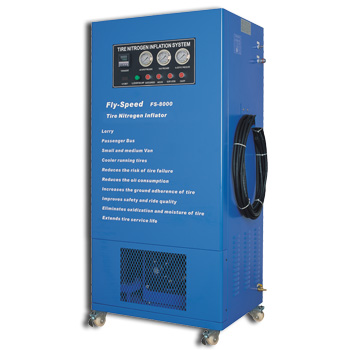

FS-8000


FS-8000

Truck use

产品特性
Equipment adopts supercharger and fast nitrogen producing system.
Compressed air is filtered twice.
Equipment also adopts water cooling and constant temperatrue device to
   guarantee the safety use of charging hose.
  • FS-8000



Technical Data
Vehicle Applicable:
Power supply :AC380V/50~60Hz
Power : 2.0Kw
Nitrogen Purity : 95~99.5%
Operation Temp:+5℃~+40℃
Compressed Air Pressure Required:0.8~1.2Mpa
Air compressor discharge rate :>1.08M3/Min
No supercharger,Output Nitrogen Pressure : ≤101Psi/8Bar/0.8Mpa
Supercharged Nitrogen Output :≤232Psi/16Bar/1.6Mpa
Nitrogen Output:160L/min
Truck Tyre (10.00/20 R75 size):15Tyres/Hour
Dimension:1700(H)X930(L)X640(W)mm
Net weight :238 Kg
Packing size:1880(H)X965(L)X770(W)mm
Gross weight :263 Kg
Storage tank packing size :620X1750(mm)
Storage tank weight :97 Kg (300L)

Dimension:1880(H)X965(L)X770(W)mm
N.W.: 263 Kg
G.W.: 293 Kg
Dimension: 620X1750(mm)
G.W.: 97 Kg (300L)
