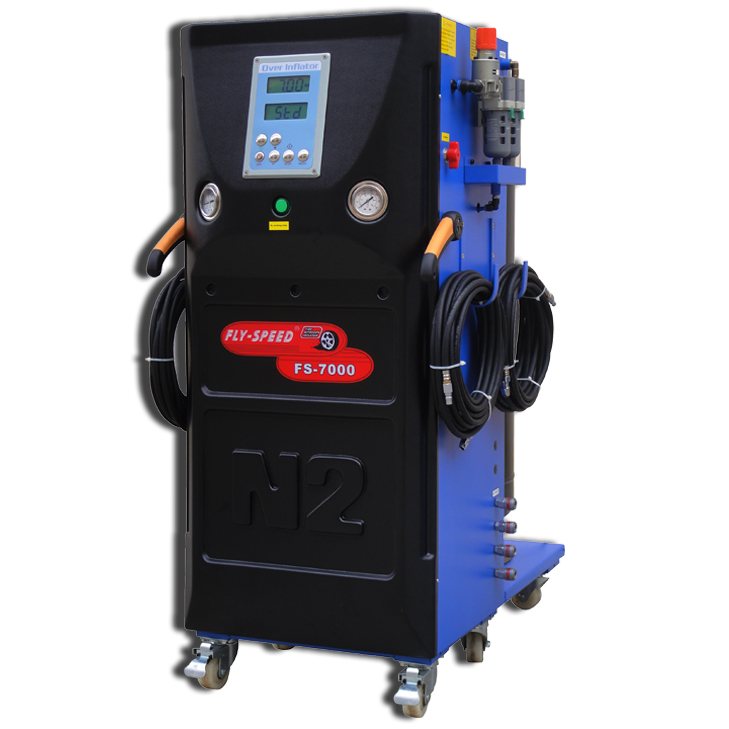

FS-7000

Technical Data
Vehicle Applicable:
Power supply : AC220V/50Hz
Power: 60W
Nitrogen Purity: 95~99.5%
Compressed Air Input Range/Inputairflow：145~200Psi/10~13.8Bar 600L/min
Nitrogen Output: 283L/min
Nitrogen Storage Tank : 120L/31.8gal
N₂ Output Pressure : ≤116psi/8bar
Over Pressure Setting Range : 0~29psi/0~2.00bar
Nitrogen Purges : 0~6
Operation Temp : +5℃~+40℃
Measuring Range : 5~116Psi/0.3~8Bar
Inflator Accuracy : ±1psi/0.07bar
Dimension : 1320(H)X700(L)X560(W)mm
Net weight : 214Kg
Packing size : 1470(H)X760(L)X615(W)mm
Gross weight : 229 Kg

Dimension： 1470(H)X760(L)X615(W)mm
N.W.：214 Kg
G.W.: 229 Kg
