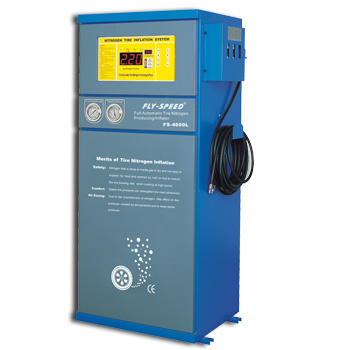

FS-4000L

Technical Data
Vehicle Applicable:
Power supply : AC110V/220V/50~60Hz
Power : 60W
Nitrogen Purity: 95~99.5%
Compressed Air Input Range: 8~10Bar/116~145Psi
Nitrogen Output: 66L/min
Nitrogen Storage Tank : 70L/18.5gal
N2 Output Pressure : ≤87psi/6.0bar
Operation Temp : +5℃~+40℃
Measuring Range: 5~110Psi/0.3~8Bar
Accuracy : ±0.5Psi/0.03Bar
Display Mode : LED
Dimension : 1420(H)X720(L)X510(W)mm
Net weight: 128 Kg
Packing size : 1560(H)X760(L)X615(W)mm
Gross weight : 145 Kg

Dimension： 1560(H)X760(L)X615(W)mm
N.W.：128 Kg
G.W.: 145 Kg
