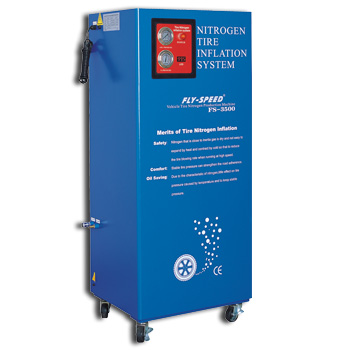

FS-3500


FS-3500

Car use

产品特性
Equipment adopts high-octane BF-220# Carbon molecular sieve.
Fast nitrogen producing can meet the needs of continuing tyre inflation.
For compatible medium,the compressed air is filtered by sophisticated
   filtration device.
The equipment can do self-regulation to input air pressure to insure the
   equipments service life.
  • FS-3500



Technical Data
Vehicle Applicable:
Power Supply : AC220V/50Hz
Motor Power: 40W
Nitrogen Purity : 95~99.5%
Compressed Air Input Range: 8-10kg/cm2 100~145Psi
Nitrogen Output :66L/min
Nitrogen Storage Tank : 70L/18.5gal
N2 Output Pressure : 4-7kg/ cm2 58~100Psi
Dimension : 1300(H)X630(L)X450(W)mm
Net weight : 89 Kg
Packing size : 1440(H)X730(L)X560(W)mm
Gross weight : 107 Kg

Dimension: 1440(H)X730(L)X560(W)mm
N.W.:89 Kg
G.W.:107Kg
