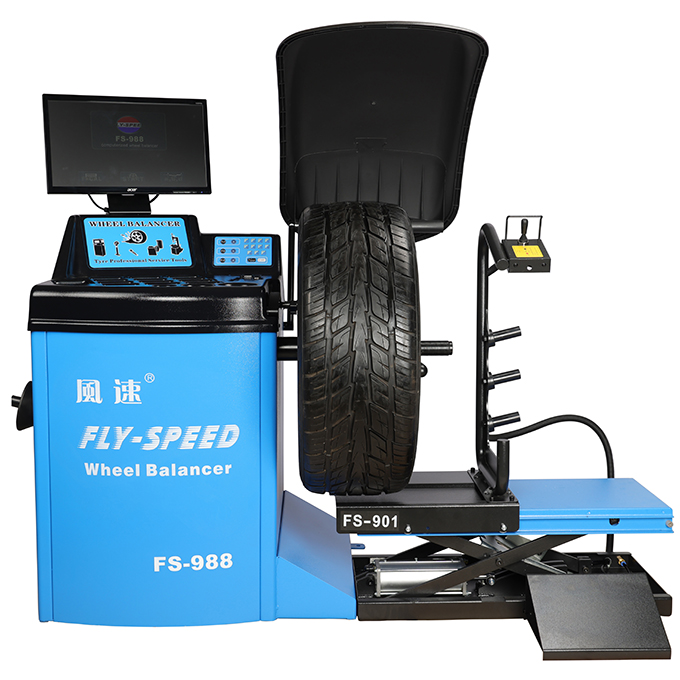

FS-988+FS901

Wheel balancer

Focus on larger size and heavy duty tyre.

With the characteristics of high-precision measurement and accurate repeated measurement accuracy.

5 optional modes of balancing weight.

With automatic measurement function of rim diameter and distance.

High mechanical principal axis perform the heat treatment to make sure the precision of high repeated measure.

Make up for the shortcomings of the current balancing machine's lack of accuracy in balancing large tyres.

Self-calibration function with automatic detection function and restoration of measurement accuracy.

Luxury high LED monitor with 3D animation interface, easy and convenient to operate.

Tyre lift FS-901 is optional for easy loading and unloading of large(≤26”) and heavy(≤100kg) tyres on the balancing machine.

Technical data
Product dimension
Packing dimension
Parts list

Technical Data
Power supply : AC 110V/220V/50~60Hz
Motor Power : 0.25KW
Rim Diameter: 10"~26"/254~660mm
Rim Width: 1.5"~20"/38~508mm
Max. Wheel Diameter: 1000mm
Max. Wheel Weight : 100 Kg
Balancing Speed: ~215r.p.m
Cycle Time: 8s
Noise: ＜70db
Balancing Precision：±1g
Net weight : 152 Kg
Gross weight :178 Kg

Dimension：1050×850×1200MM
N.W.：88 KG
G.W.：104 KG

Dimension：780×470×340MM
N.W.：41 KG
G.W.：45 KG
