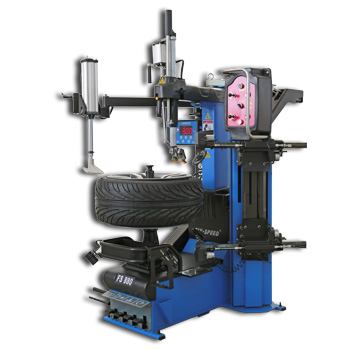

FS-880+LH660


FS-880+LH660

Tyre changer 880 series

产品特性
Powerful and reversible mounting head takes the place of traditional crowbar. It protects tyre lips and rims thoroughly, which also makes mounting and dismounting     convenient and faster.
Powerful alloy gear box and no center positioning locking device makes operation more convenient.
Up and down synchronous movement type assistant arms, plastic steel tyre pressure wheel replace tyre shovel, which provides a maximum protection of rims.
Maximum mounting and dismounting size is up to 26 inches. Suitable for all kinds of tyres. It’s best for low profile tyres and run-proof tyres.
Operation table can be adjustable up and down, which realizes anti-positioning and mounting/dismounting more wider tyres.
With 380V two speed motor, it improves mounting/dismounting efficiency.
Tyre pneumatic lifting system saves time and effort when mounting/dismounting heavey-duty tyres.
High precision automatic tyre inflation system makes inflation fast and accurate.



  • FS-880+LH660



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power :  1.1KW
Rim diameter:  12"~26"/305~660mm
Max. wheel diameter: 43"/1100mm
Max. wheel width : 16"/410mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 474 Kg
Gross weight :546 Kg



Dimension:1560×1420×2000MM
N.W.:474 KG
G.W.:546 KG
