FS-860+RH750i+LH660

Tyre changer 860 series

Bigger and thicker column with pneumatic tilting forward and backward.

60mm four winds high intensity steel is adopted in the cross arm, 40mm six
angle steel is also used on the connecting of mounting tool, all of which make
the mounting/demounting is more stable and durable.

There are automatic adjusting and dual locking mounting device on the
equipment, which insure the reasonable gap between mounting head and rim.

Professional and dual user friendly design assistant arms provides efficient
services for demounting low profile tyre and PAX, the maximum tyre size up to
26'.

Professional design, special alloy mounting head and clamp which provide
life-long free services.

High precision automatic tyre inflation system makes inflation fast and
accurate.

Aluminous material is adopted in big cylinder which to avoid rust to guarantee
the long life using.

FS-860+RH750i+LH660

Technical data

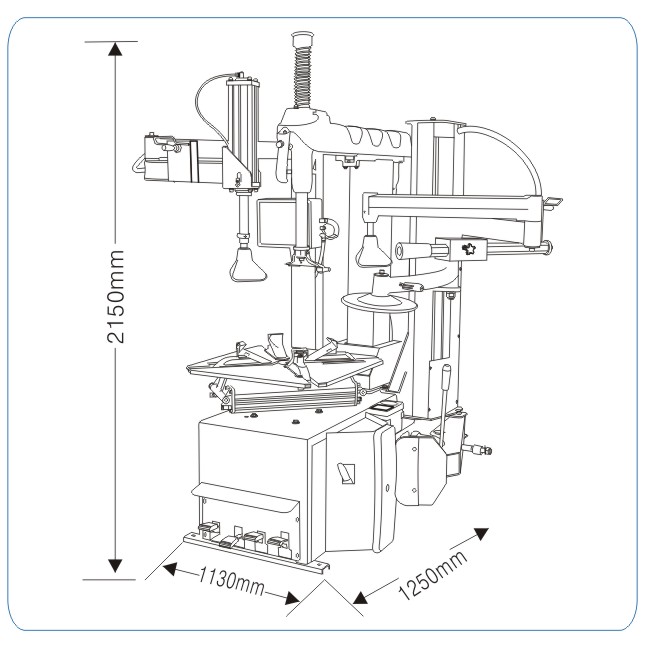

Product dimension

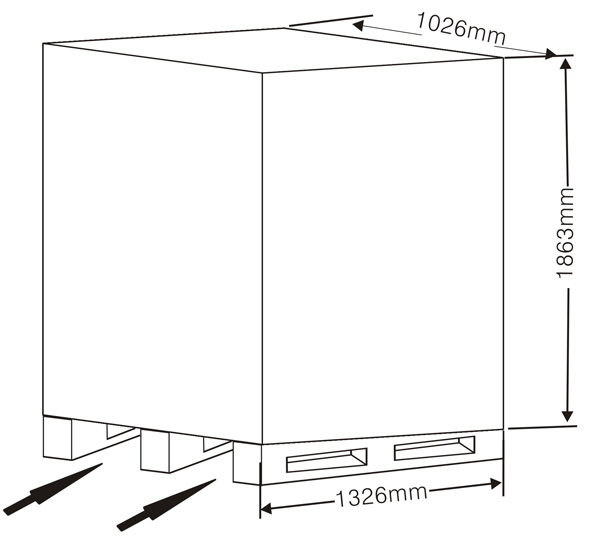

Packing dimension
Parts list

Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~26"/280~660mm
Max. wheel diameter: 43"/1100mm
Max. wheel width : 16"/410mm
Operating pressure : 8~10bar
Noise: ＜70db
Net weight : 391 Kg
Gross weight :431 Kg

Dimension：1326×1026×1863MM
N.W.: 391 Kg
G.W.: 431 Kg
