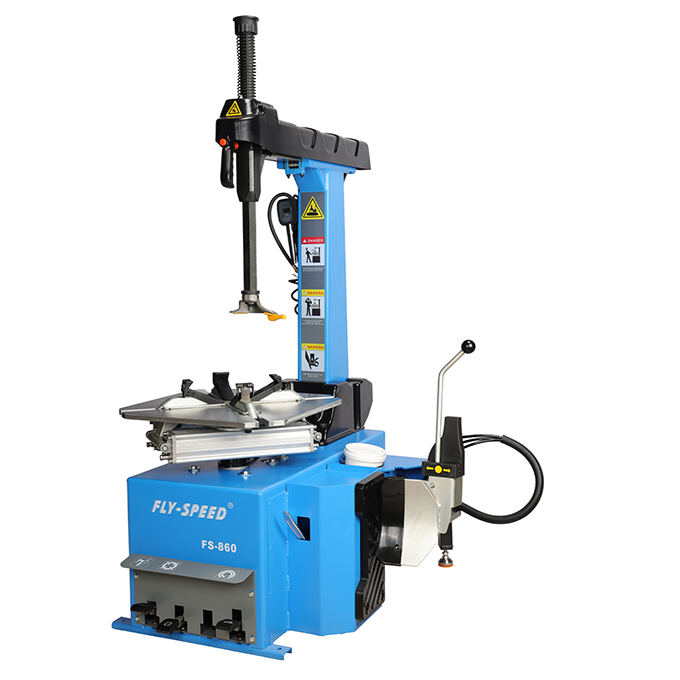

FS-860


FS-860

Tyre changer 860 series
产品特性
Automatic adjustment and double locking device insure reasonable gap between mounting head and rim.
The professional and user-friendly designed hand-controlled pneumatic tyre shovel changes the traditional operation method and provides convenient service.
Reserved mounting holes for auxiliary hand and be prepared to upgrade and install auxiliary hand in the future.
Professionally designed and manufactured mounting head made of special alloys provides life-time free service.
  • FS-860



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~23"/280~585mm
Max. wheel diameter: 43"/1100mm
Max. wheel width : 16"/410mm
Operating pressure : 8~10bar
Noise: ＜70db
Net weight : 290 Kg
Gross weight :315 Kg

Dimension：1300×850×1100MM
N.W.:  270 Kg
G.W.:  310 Kg
