FS-850


FS-850

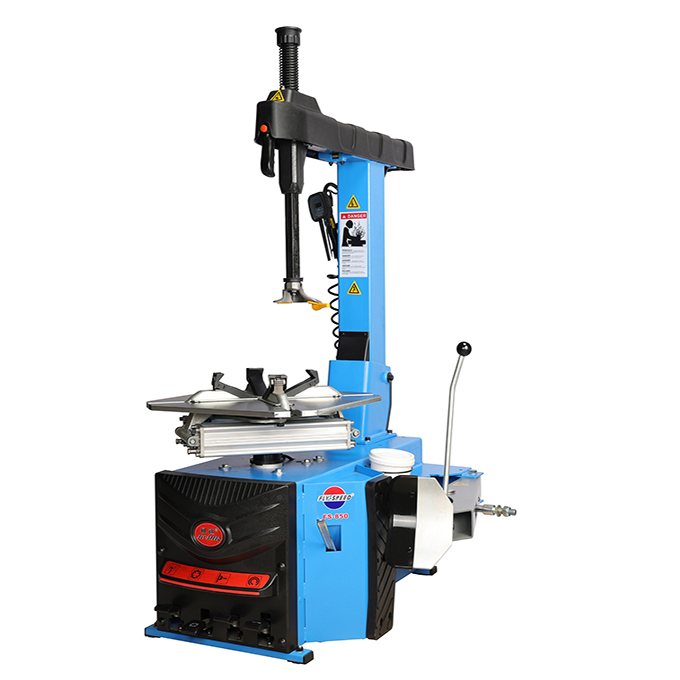

Automatic tyre changer

产品特性
The enlarged 24"turntable is suitable for mounting/demounting more larger and
   wider tyre, especially for low profile tyre.
Semi-automatic side swing arm.
Pneumatically operated tilting column.
Helper installation holes have been kept in advance.
RH-750(helper) is optional, easy for the operation.
Aluminous material is adopted in big cylinder which to avoid rust to guarantee
   the long life using.
40A pure silver point reverse switch adopted, the motor works more stable.
  • FS-850



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~23"/280~585mm
Inside clamping:  12"~24"/305~610mm
Max. wheel diameter: 43"/1100mm
Max. wheel width : 16"/410mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 234 Kg
Gross weight :261 Kg

Dimension:770×1120×970MM
N.W.:  230 Kg
G.W.: 256 Kg
