Technical Data
Power supply : AC 110V/220V/380V/50~60Hz Motor Power : 1.1KW Outside clamping: 11"~22"/280~560mm Inside clamping: 12"~23"/305~585mm Max. wheel diameter: 38"/965mm Max. wheel width : 11"/280mm Operating pressure : 8~10bar Noise: ＜70db Net weight : 229 Kg Gross weight :250 Kg

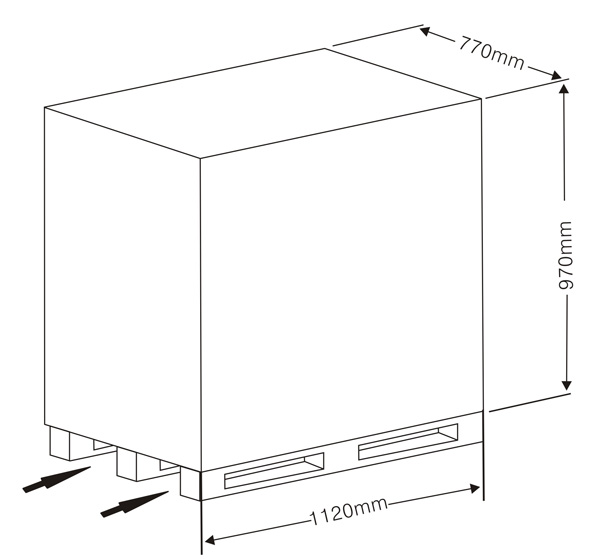

Dimension：770×1120×970MM Please follow the personnel of the service for the member account number and password, then login to view, thank you! |
|||||||||
|
Tel：0760-86367288 Fax：0760-86361623 Addr: Bld. C2, Xinxu Jinwan Industrial Zone, No.6 Shengye Rd.,Sanxiang, Zhongshan, GD, China 528463 Copyright@FLY-SPEED AUTO-EQUIPMENT All Rights Reserved Site Visits：190024次 Admin | Mail Login | Design: 0086HX | |

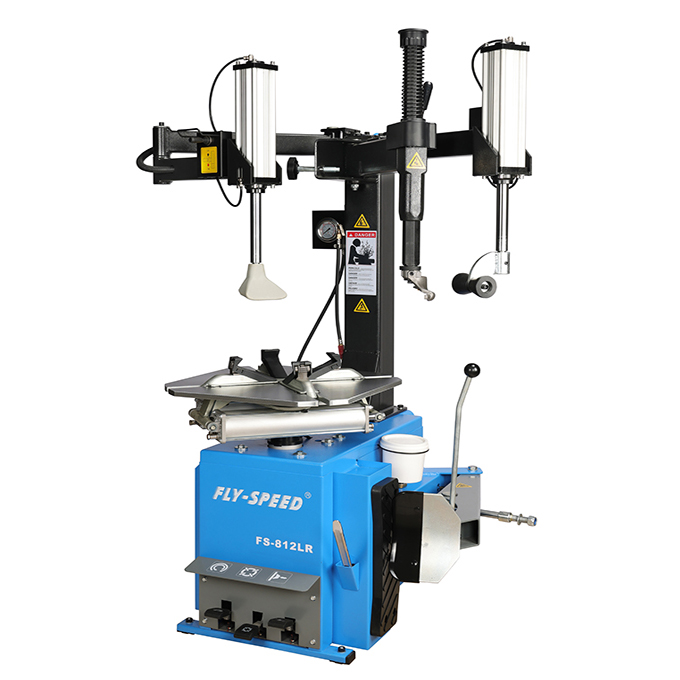

With left cylinder type auxiliary arm system, it makes operation more quick and time-saving when mounting/dismounting tyres with a larger width and aspect ratio.
