FS-813


FS-813

Economic semi-automatic tyre changer

产品特性

The enlarged 23"turntable is suitable for mounting/demounting larger and
   wider tyre.
Left assistant arm makes the wider tyre mounting/demounting operation much
   swift and labor saving.
Scientific and stable design to make sure the wheel and tyre free of damage
   during operation.
With the function of centering, makes the operation easy and convenient.
Aluminous material is adopted in big cylinder which to avoid rust to guarantee
   the long life using.
40A pure silver point reverse switch adopted, the motor works more stable.

  • FS-813



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~22"/280~560mm
Inside clamping:  12"~23"/305~585mm
Max. wheel diameter: 38"/965mm
Max. wheel width : 11"/280mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 216 Kg
Gross weight :243 Kg

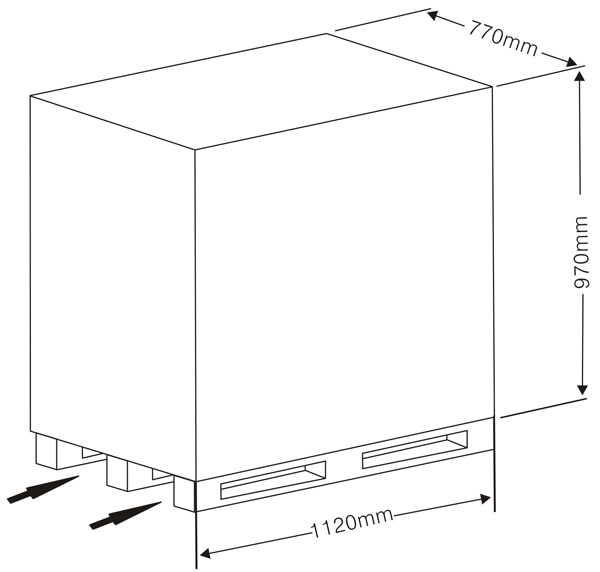

Dimension:770×1120×970MM
N.W.:  208 Kg
G.W.: 234 Kg
