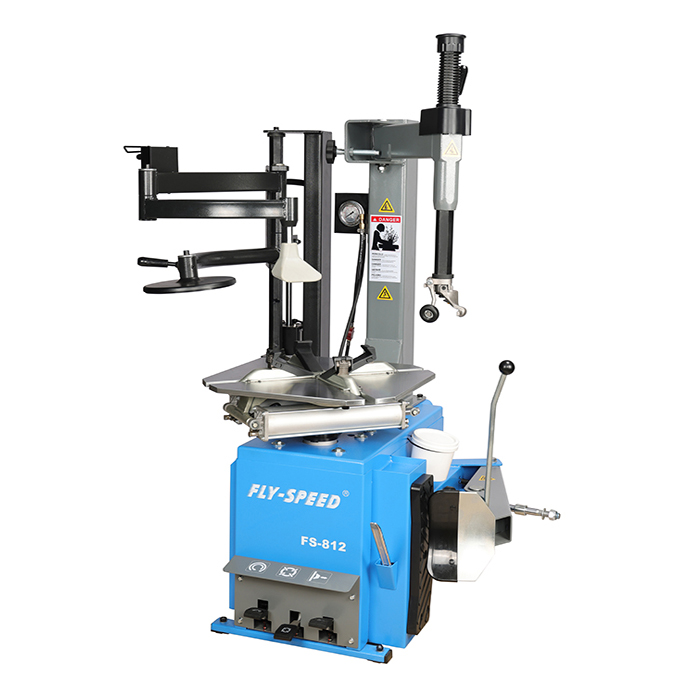

FS-812+LH730


FS-812+LH730

Economic semi-automatic tyre changer

产品特性
The LH-730 arm is a powerful, convenient aid especially developed to make all
   mounting and demounting operations on the increasingly common super low
   profile, run-flat, pax tyre and light alloy rims simpler, faster and safety.
Aluminous material is adopted in big cylinder which to avoid rust to guarantee
   the long life using.
40A pure silver point reverse switch adopted, the motor works more stable.
  • FS-812+LH730



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power: 1.1KW
Outside clamping: 11"~22"/280~560mm
Inside clamping : 12"~23"/305~585mm
Max. wheel diameter: 38"/965mm
Max. wheel width: 11"/280mm
Operating pressure : 8~10bar
Noise:<70db
Net weight: 243 Kg
Gross weight: 275 Kg

Dimension:770×1120×970MM
N.W.:236 KG
G.W.:270 KG

Dimension:1200×400×360MM
N.W.:47 KG
