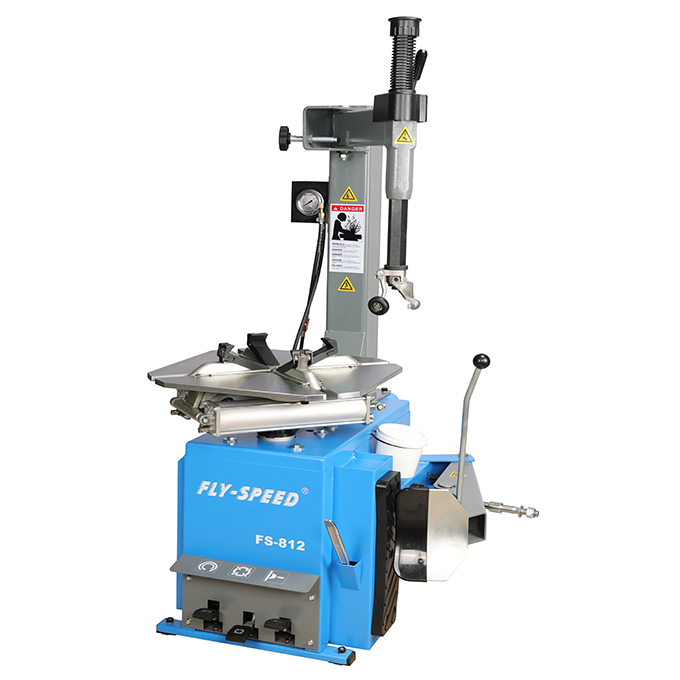

FS-812


FS-812

Economic semi-automatic tyre changer

产品特性
The enlarged 23"turntable is suitable for mounting/demounting more larger and
   wider tyre,  especially for low profile tyre.
The clamping jaws, mounting head is made of high-quality alloy steel  and of
   scientific structural design which protects steel rim from any damage during
   operation.
Aluminous material is adopted in big cylinder which to avoid rust to guarantee
   the long life using.
40A pure silver point reverse switch adopted, the motor works more stable.
  • FS-812



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~22"/280~560mm
Inside clamping:  12"~23"/305~585mm
Max. wheel diameter: 38"/965mm
Max. wheel width : 11"/280mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 194kg
Gross weight :221kg

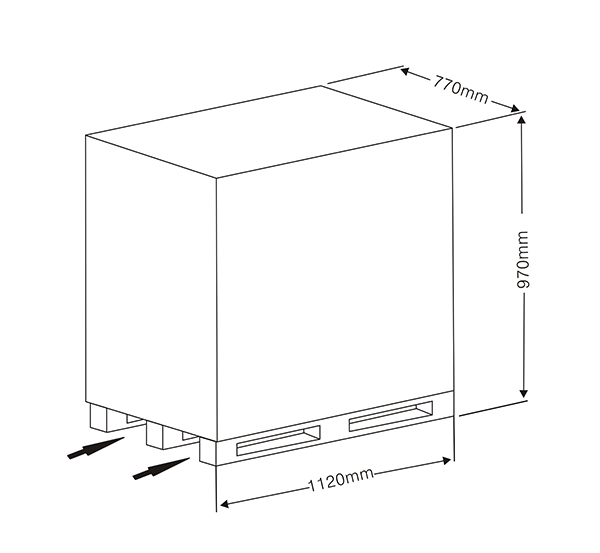

Dimension:770×1120×970MM
N.W.:  190kg
G.W.:  216kg
