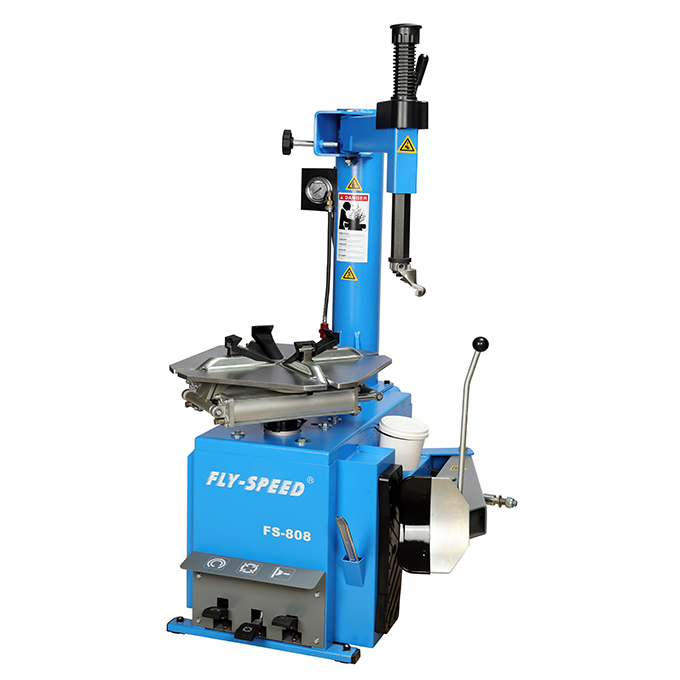

FS-808


FS-808

Economic semi-automatic tyre changer

产品特性
Large and strong round column, enhance the mounting and  dismounting
   stability.
Suitable for 11''-21'' rim, semi-automatic tyre changer, dismounting tyre without    fitting any device to 18'' rim.
The clamping jaws, mounting head is made of high-quality alloy steel and of
   scientific structural design which protects steel rim from any damage during
   operation.
Aluminous material is adopted in big cylinder which to avoid rust to guarantee
   the long life using.
40A pure silver point reverse switch adopted, the motor works more stable.
  • FS-808



Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~21"/280~533mm
Inside clamping:  12"~22"/305~560mm
Max. wheel diameter: 37"/940mm
Max. wheel width : 10"/255mm
Operating pressure : 8~10bar
Noise: <70db
Net weight : 178 Kg
Gross weight :206 Kg

Dimension:770×1120×970MM
N.W.:  176 Kg
G.W.:  202Kg
